Connectors

AS Composants offers a wide range of miniature and standard connectors for both thermocouples and RTDs, as well as a complete range of accessories, panel inserts, terminals, tools, and mounting solutions.

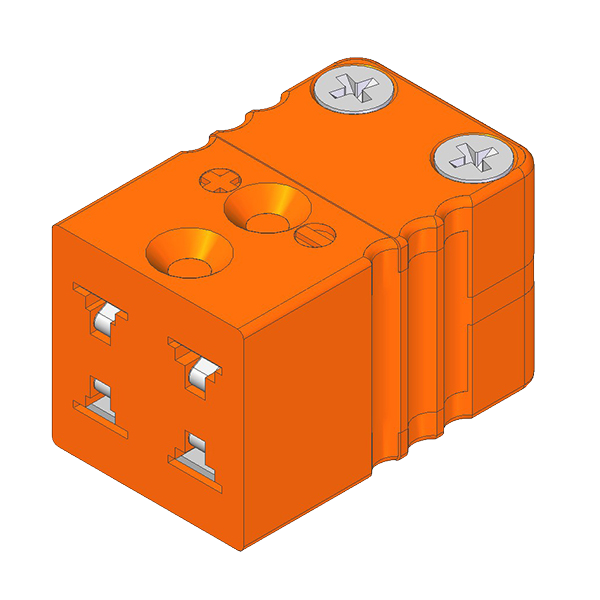

The very popular miniature connectors are an essential part of the range. They are made of fiberglass-reinforced thermoplastic with stainless steel screws and are resistant up to 200°C. High-temperature (540°C), ceramic (650°C) or locking variants are also available. They can be selected in 3 or 4-pin versions for ground connections or for 3 & 4-wire RTDs. The range includes many accessories: silicone cable inserts, protective sleeves, locking clips, clamping rings, crimp inserts, stainless steel supports, etc. These parts increase reliability and provide mechanical protection and sealing.

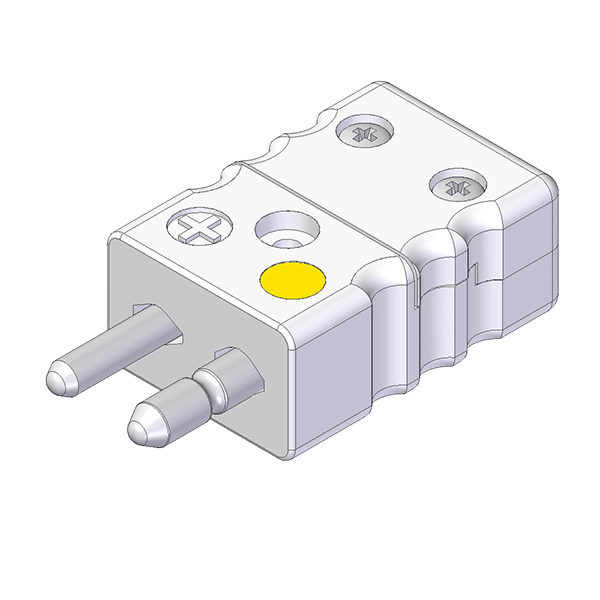

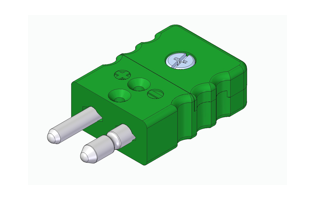

Standard connectors are available in thermoplastic, thermoset, or ceramic materials for the very high-temperature version (up to 1200°C) and also in 3-pin and duplex configurations.

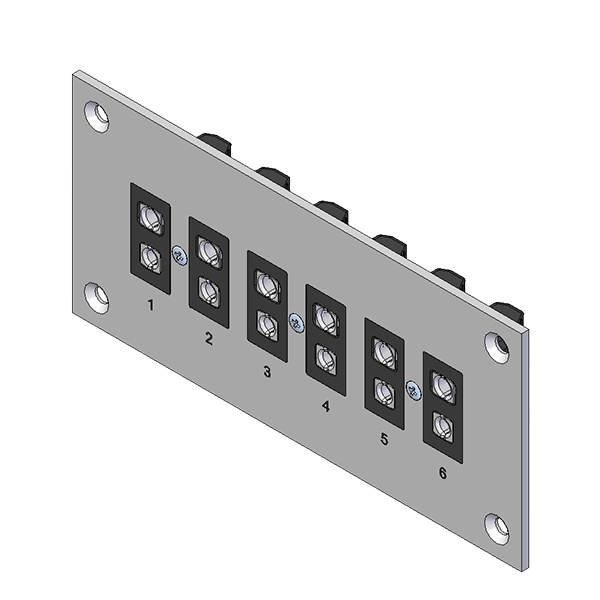

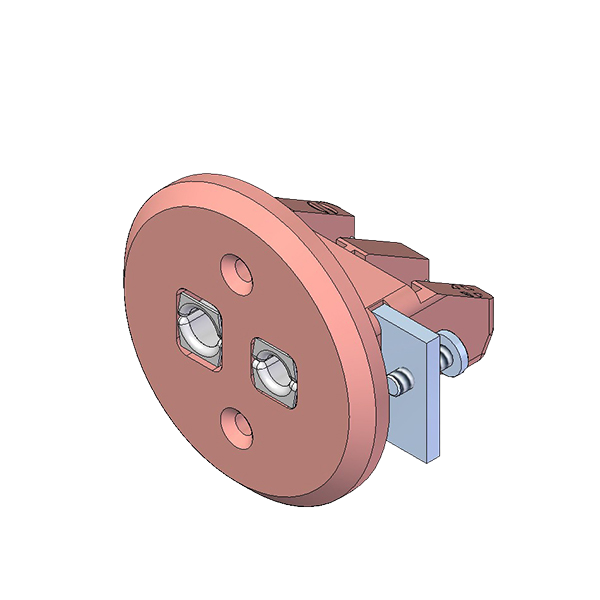

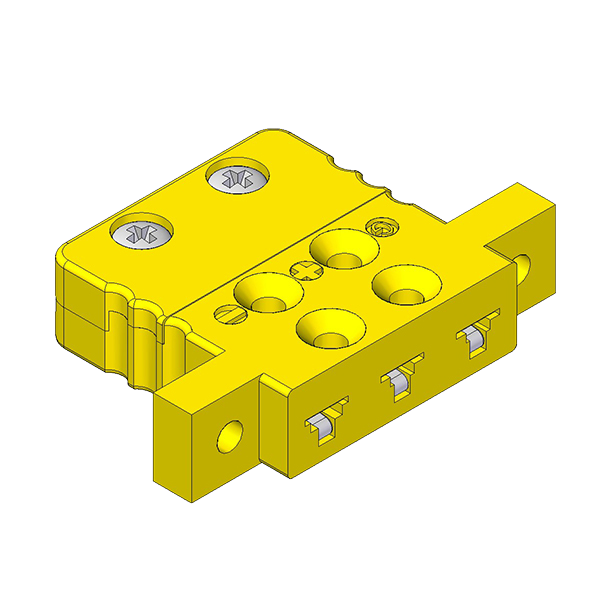

To equip your enclosures, we will find a complete range of panels and associated sockets, with various mounting options. Some versions feature a locking system to prevent accidental disconnections.

All of these products are available in all standard thermocouple color codes. This range meets the needs of manufacturers for connecting temperature sensors with reliability, durability, and modularity in the most demanding environments.
